Model Number : D-AA700mAh 1.2V
Place of Origin : China
MOQ : 1000PCS
Payment Terms : L/C,T/T,Western Union
Delivery Time : 35 working days
Packaging Details : Industrial Pakcage
voltage : 1.2V
capacity : 700mAh
Dimensions : 14.0mm (±0.3mm) × 50.0mm (±0.3mm)
Weight : 23g
Standard Charge Current : 0.1C (70mA) for 14-16 hours
Rapid Charge Current : 0.5C (350mA)
Internal Resistance : ≤30mΩ
Cycle Life : ≥500 cycles
Name : Rechargeable Flashlight Battery
Features
High Discharge Rate: Capable of delivering high pulse currents, making it suitable for power-hungry devices.
Wide Temperature Range: Performs reliably in both extreme cold and hot environments where other batteries fail.
Long Cycle Life: Can be recharged hundreds of times with minimal capacity loss, offering excellent long-term value.
Maintenance Recovery: Capacity diminished by the "memory effect" can often be recovered through a full discharge/charge cycle.
Specifications
| Model | D-AA700mAh 1.2V |
| Max Dimension | 14*50mm (Diameter*Height) |
| Voltage | 1.2V |
| Nominal Capacity | 700mAh |
| Iedance | ≤30mΩ |
| Discharge cut-off voltage | 1.0V |
| Maximum Charge voltage | 1.4V |
| Standard charge current | 0.1C for 16 hours |
| Standard discharge current | 0.2C |
| Approx Weight | 23g |
| Working teerature | Charge:0-45 Celsius degree |
| Discharge:-20-60 Celsius degree | |
| Storage teerature | minus 20 - 45 Celsius degree |
| Self-Discharge Rate | 15-20% per month (at 20°C) |
| Cycle life | 500 cycles |

Consumer Electronics: Remote controls, toys, portable radios, and calculators.
Power Tools: Cordless drills, screwdrivers, and other tools requiring high burst current (often in multi-cell packs).
Emergency Devices: Exit signs, backup lighting systems, and security sensors.
Medical Equipment: Portable devices like blood pressure monitors and thermometers.
Charging
Terminate charge using proper methods (-ΔV, temperature cut-off, or timer) to prevent overcharging.
Never charge at currents exceeding the specified maximum.
Charge within the specified temperature range (0°C to 45°C). Charging below 0°C can cause irreversible damage.
Discharging
Do not short-circuit the terminals. This will generate extreme heat and pose a fire risk.
Allow the battery to cool after prolonged high-rate discharge before recharging.
Storage & Handling
Avoid storing the battery in a fully discharged or fully charged state for extended periods.
Contains Cadmium: This is a toxic heavy metal. DO NOT DISPOSE OF IN REGULAR TRASH.
Must be recycled at a designated battery recycling facility.
|
|

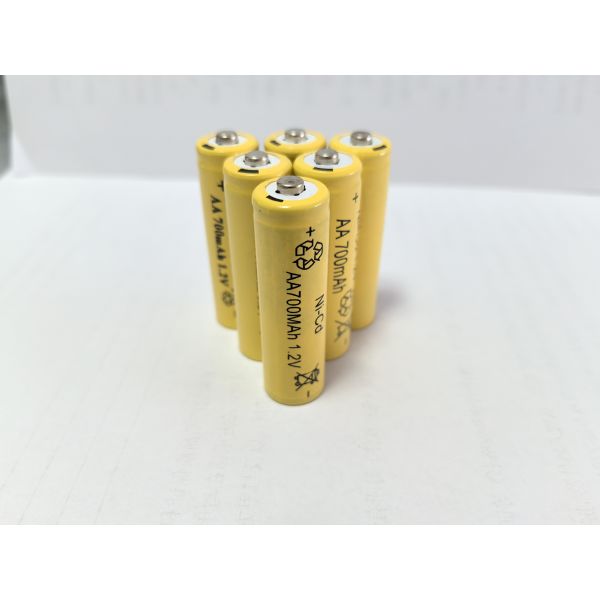

NI CD 1.2 V AA 700Mah Rechargeable Battery For High Drain Flashlights Images |
