High Density Semi-Solid Li-ion Batteries 50ah 3.6V Solid State Battery

Features

1. High Energy Density: With an estimated energy density of 304 Wh/kg, this cell is designed for applications requiring long runtime and compact size.

2. Enhanced Safety Profile: The semi-solid electrolyte is less flammable than conventional liquid electrolytes, significantly improving the cell's resistance to leakage, thermal runaway, and fire .

3. Potential for Long Cycle Life: The semi-solid state can help suppress lithium dendrite growth and reduce side reactions at the electrode interfaces, contributing to extended cycle life .

4. Fast Charging Capability: The ionic conductivity of semi-solid electrolytes can be engineered to support faster charging compared to standard Li-ion batteries .

5. Wide Operating Temperature Range: Suitable for use in diverse environmental conditions.

Specification

Applications

• Light Electric Vehicles : Electric scooters, e-bikes, and small electric cars .

• Advanced Energy Storage Systems : Home and industrial backup power systems.

• High-End Portable Power Stations: Providing reliable power for outdoor and emergency use.

• Specialized Industrial Equipment: Such as robotics, drones, and medical devices.

Warnings & Safety Instructions

Charging

• Use Designated Chargers: Charge only with a charger designed for 3.6V Li-ion batteries using the CC/CV method.

• Temperature Control: Do not charge outside the specified temperature range (0°C to +55°C). Charging below 0°C can lead to lithium plating; charging above 55°C is hazardous.

• Voltage/Current Limits: Do not exceed the maximum charge voltage of 4.25V or the maximum charge current.

Discharging

• Voltage Limit: Do not discharge the battery below the cut-off voltage to prevent deep discharge damage.

• Current Limit: Do not exceed the maximum continuous discharge current.

• Temperature Monitoring: If the battery becomes excessively hot during use, stop operation and allow it to cool.

Storage

• Ideal Storage Charge: For long-term storage, store the battery at a state of charge between 30% and 50%.

• Storage Environment: Store in a cool, dry place away from direct sunlight and moisture.

High Density Solid State Lithium Battery

Semi Solid Lithium Ion Battery 50AH

3.6V Solid State Battery

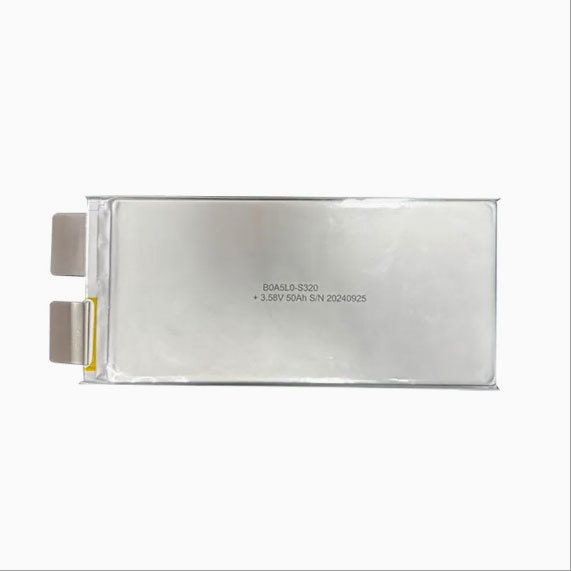

High Density Semi Solid Lithium Ion Battery 50AH 3.6V Solid State Battery Images
